Specifications
- ChipsetAMD X870Form FactorATXProcessor SocketSocket AM5 (LGA 1718)Wireless Networking StandardWi-Fi 7Number Of Memory Slots4Maximum Memory Supported192 gigabytes
- Key Specs
- Chipset: AMD X870
- Form Factor: ATX (The size, arrangement, and physical configuration of the product.)
- Processor Socket: Socket AM5 (LGA 1718) (Type of pin configuration that connects a CPU to a computer’s motherboard.)
- Wireless Networking Standard: Wi-Fi 7 (The wireless networking standard used by the device. Each iteration of the standard developed by the Wi-Fi Alliance corresponds to an existing IEEE 802.11 protocol; for example, standard 802.11ac (or AC) is termed Wi-Fi 5. Refers specifically to the standard the device is designed to use, but ultimately determines product interoperability and backward compatibility including previous versions.)
- Number Of Memory Slots: 4
- Maximum Memory Supported: 192 gigabytes
- Memory Type Supported: DDR5
- General
- Brand: ASUS
- Model Number: ROG CROSSHAIR X870E HERO
- Product Name: ROG CROSSHAIR X870E HERO (Socket AM5) AMD X870 ATX DDR5 Wi-Fi 7 Motherboard
- Color: Black
- Year of Release: 2024
- Compatibility
- Chipset: AMD X870
- Chipset Compatibility: AMD
- Form Factor: ATX (The size, arrangement, and physical configuration of the product.)
- Processor Socket: Socket AM5 (LGA 1718) (Type of pin configuration that connects a CPU to a computer’s motherboard.)
- Processor Compatibility: AMD Ryzen 9 9000 Series, AMD Ryzen 7 9000 Series, AMD Ryzen 5 9000 Series, AMD Ryzen 9 8000 Series, AMD Ryzen 7 8000 Series, AMD Ryzen 5 8000 Series, AMD Ryzen 9 7000 Series, AMD Ryzen 7 7000 Series, AMD Ryzen 5 7000 Series
- Operating System Compatibility: Windows 11 Home
- Slot
- Number of M.2 Slots: 5 (This interface is most commonly used for high-speed solid state drives (SSDs), and is often used in laptops due to its small size.)
- Number Of PCI-E x16 Slots: 2
- Number Of PCI-E x8 Slots: 2
- Number Of PCI-E x4 Slots: 2
- Number Of Memory Slots: 4
- Connectivity
- SATA Connector: 4 (The configuration of the connector as it connects a computer power supply unit to a SATA-based drive.)
- Wireless Connectivity: Wi-Fi, Bluetooth (The manner in which a device sends data to another device over a short distance without the use of wires or cables.)
- Wireless Networking Standard: Wi-Fi 7 (The wireless networking standard used by the device. Each iteration of the standard developed by the Wi-Fi Alliance corresponds to an existing IEEE 802.11 protocol; for example, standard 802.11ac (or AC) is termed Wi-Fi 5. Refers specifically to the standard the device is designed to use, but ultimately determines product interoperability and backward compatibility including previous versions.)
- Ports

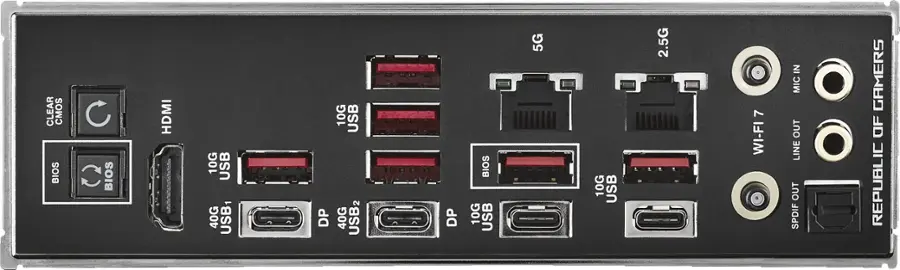

- USB Ports: 6 x USB-A 3.2, 2 x USB-C 3.2, 4 x USB-A 3.1, 4 x USB-A 2.0 (The number and type of USB ports the product has.)
- Number of Audio Channels: 7.1 (The number of discrete channels of sound output. This can be a single number or multiple numbers separated by decimal(s). The first number is the primary, horizontally directed audio channels. The number after the first decimal, if applicable, is the number of subwoofer outputs or channels. The number after the second decimal, if applicable, is the number of height or atmospheric channels designed to immerse the listener by producing overhead sound effects.)
- Dimensions
- Product Length: 12.01 millimeters (The out of box length of the item. Length is measured as the longest dimension of the item.)
- Product Width: 9.61 millimeters (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Weight: 8.5 ounces (The out of box weight of the item.)
- Memory
- Maximum Memory Supported: 192 gigabytes
- Memory Type Supported: DDR5
- Memory Format Supported: UDIMM (Memory module size that will fit with the device.)
- Memory Speeds Supported: 8400(OC)/8200(OC)/8000(OC)/7800(OC)/7600(OC)/7200(OC)/7000(OC)/6800(OC)/6600(OC)/6400/6200/6000/5600/5200/4800 (The RAM's bandwidth rating supported by the device. The number refers to transfer speed. For example, 12800 would indicate that the memory has a theoretical bandwidth of 12,800 megabytes per second (MBs). The higher the number, the faster the speed.)
- Memory Slot Type: 288-pin DIMM
- Features
- RAID Support: RAID 0, RAID 01 (RAID 0+1), RAID 10 (RAID 1+0) (A Redundant Array of Independent Disks (RAID) includes a collection of separate disks that your computer recognizes as one disk unit. Each configuration offers a different level of mirroring, striping and read/write speeds.)
- Warranty
- Warranty - Parts: 3 Years
- Warranty - Labor: 3 Years
- Other
- UPC: 197105710306

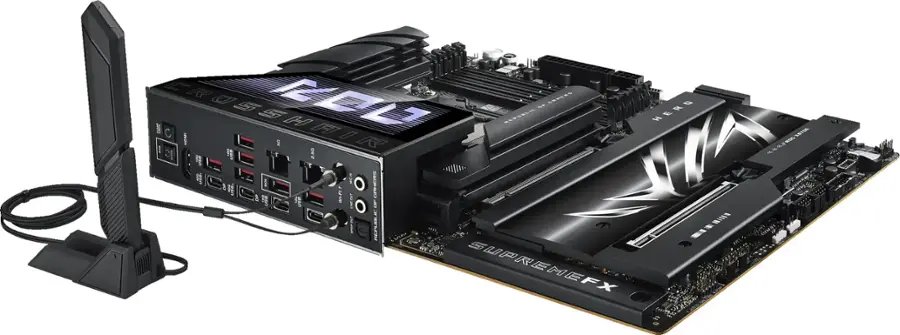

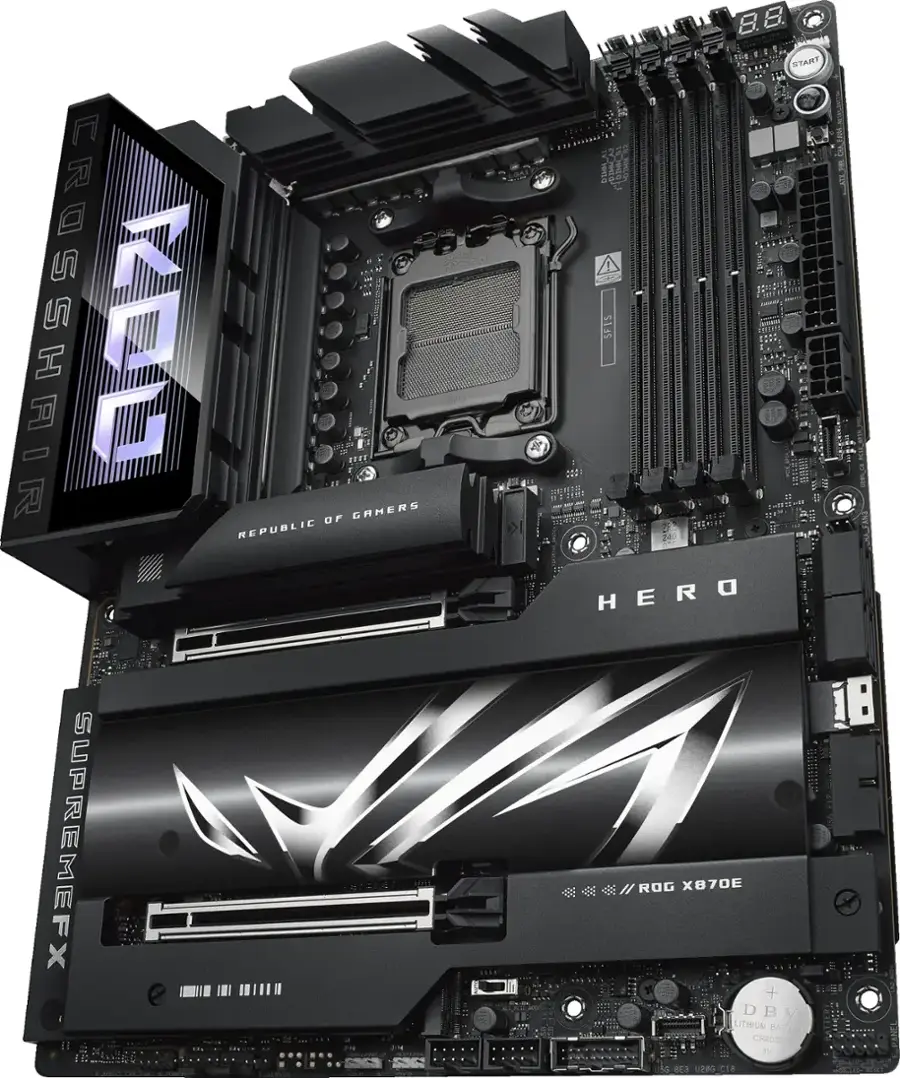

ASUS ROG CROSSHAIR X870E HERO AMD X870E AM5 ATX motherboard, Advanced AI PC ready, 18+2+2 power stages, DDR5, PCIe 5.0, 5x M.2, Wi-Fi 7, USB4, AI Overclocking, Core Flex, PCIe Slot Q-Release Slim
- Ready for Advanced AI PC: Designed for the future of AI computing, with the power and connectivity needed for demanding AI applications
- AMD AM5 Socket: Ready for AMD Socket AM5 for AMD Ryzen 9000 & 8000 & 7000 Series Desktop Processors
- Intelligent Control: ASUS-exclusive AI Overclocking, AI Cooling II, AI Networking II, and AEMP to simplify setup and improve performance
- ROG Overclocking Technologies: Dynamic OC Switcher, Core Flex, Asynchronous Clock and PBO Enhancement
- Robust Power Solution: 18(110A)+2(110A)+2 power stages with ProCool II power connectors, MicroFine alloy chokes and premium metallic capacitors
Q: Is the motherboard compatible with Windows 11 Home?
A: This motherboard is compatible with Windows 11 Home.
Q: What is the maximum memory supported by the motherboard?
A: The maximum memory supported by the motherboard is 192 gigabytes.
Q: Can the motherboard support AMD Ryzen 9 9000 Series processors?
A: This motherboard supports AMD Ryzen 9 9000 Series processors.
Q: How many power stages does the motherboard have?
A: The motherboard has 18+2+2 power stages.
Q: Does the motherboard have a built-in Wi-Fi 7 module?
A: This motherboard does have a built-in Wi-Fi 7 module.
Q: What is the form factor of the motherboard?
A: The form factor of the motherboard is ATX.
A: It's in the manual. p. 10 rear - 2 usb4 (40gps) type 'c' P. 15 also labeled as u40g_ec1 and u40g_ec2 p. 34 connector no's 8 & 10 using usb4 controller [ASMedia ASM4242]
A: corsair vengence ddr5 ram 4x48gb Part no: CMK192GX5M4B5200C38 Even after cleaning the edge connectors, i ended up testing & reseating each dimm multiple times, to ensure that they functioned correctly individually, before installing all 4 DIMMS on the MB. Be sure to by the matched set. Once installed, i have not ever touched them again.
ASUS - ROG CROSSHAIR X870E HERO (Socket AM5) AMD X870 ATX DDR5 Wi-Fi 7 Motherboard - Black
More Buying Options
Related Item
Compare similar products
$699.99
ASUS ROG CROSSHAIR X870E HERO AMD X870E AM5 ATX motherboard, Advanced AI PC ready, 18+2+2 power stages, DDR5, PCIe 5.0, 5x M.2, Wi-Fi 7, USB4, AI Overclocking, Core Flex, PCIe Slot Q-Release Slim
$1329.99
MEG X870E GODLIKE takes all the essential elements of the AMD Ryzen 9000/8000/7000 series processors and combines them with game-ready features and proven durability.
$349.99
The X870E AORUS PRO ICE supports AM5 Processors and features unparalleled performance. GIGABYTE X870 motherboards come with upgraded power design, high grade storage standards, and outstanding connectivity that enables you to optimize your performance.
$478.99
ASUS ROG STRIX X870E-E GAMING WIFI AMD AM5 X870 ATX motherboard 18+2+2 power stages, Dynamic OC Switcher, Core Flex, DDR5 AEMP, WiFi 7, 5x M.2, PCIe 5.0, Q-Release Slim, USB4, AI OCing & Networking
| Pros for ASUS - ROG CROSSHAIR X870E HERO (Socket AM5) AMD X870 ATX DDR5 Wi-Fi 7 Motherboard - Black | |||
|---|---|---|---|
| Performance | There were no pros for this product— | There were no pros for this product— | Build Quality |
Specs
Explore tech essentials Sponsored
Reviews
Customer Images
The vast majority of our reviews come from verified purchases. Reviews from customers may include My Best Buy members, employees, and Tech Insider Network members (as tagged). Select reviewers may receive discounted products, promotional considerations or entries into drawings for honest, helpful reviews.
- Rated 5 out of 5 stars
My opinion is bias lol
Is it worth the extra $200 over the E-Gaming? Probably not. I personally just couldn't resist as imo this MB looks amazing! Performance is 100% there too. Overclocking is super easy, and the layout is good as well. My nickname just so happens to Rog as well so that's a definite plus!
Posted by RawDawg
- Rated 5 out of 5 stars
ASUS ROG X870E Crosshair Hero Review
The ASUS ROG X870E Crosshair Hero is a top-tier AM5 motherboard built for enthusiasts who demand high performance, overclocking capability, and robust connectivity. Designed with high-end components and premium features, this board is a perfect match for AMD's latest Ryzen 9000 series processors. Pros & Features: ✅ Powerful VRM Design – The 18+2 power stage VRM ensures stable power delivery, making it excellent for overclocking and handling high-performance CPUs like the Ryzen 9 9800X3D. ✅ PCIe 5.0 & High-Speed Storage – Supports PCIe 5.0 for both the GPU and M.2 slots, ensuring future-proof compatibility and extreme speeds for Gen 5 SSDs. ✅ High-Speed Connectivity – Dual USB4 ports, multiple USB 3.2 Gen 2 ports, and Wi-Fi 7 make this board ideal for fast data transfers and low-latency wireless gaming. ✅ Advanced Cooling Features – Multiple fan headers, water cooling support, and a well-designed heatsink layout help maintain optimal temperatures. ✅ DDR5 Memory Optimization – Supports high-speed DDR5 RAM with ASUS' memory tuning features, making it easier to squeeze out extra performance. ✅ ROG BIOS & Overclocking Features – The UEFI BIOS is packed with tweaking options, AI Overclocking, and voltage controls, making it an excellent choice for enthusiasts looking to push their system to the limit. ✅ Durability & Aesthetics – A premium build quality with reinforced PCIe slots, a robust backplate, and an eye-catching design with RGB lighting makes this board as good-looking as it is functional. For gamers, overclockers, and power users, the ASUS ROG X870E Crosshair Hero delivers everything needed for a high-end setup. With excellent power delivery, cutting-edge connectivity, and top-notch cooling, this motherboard is well worth the cost.
Posted by AnthonyF
- Rated 5 out of 5 stars
Asus is back! Long live the Hero
Fantastic successor to older X670 boards with killer design, features and reliability for 7000 and 9000 series CPU’s.
Posted by AdamM
