Questions & Answers

Q: QuestionWhat software does the CORSAIR iCUE COMMANDER CORE XT use?

• A:Answer The CORSAIR iCUE COMMANDER CORE XT uses the powerful CORSAIR iCUE software.

Q: QuestionWhat is the input voltage for the fan and RGB?

• A:Answer The input voltage for the fan is 12V and the input voltage for the RGB is 5V.

Q: QuestionWhat is the maximum current for the fan and RGB on the CORSAIR iCUE COMMANDER CORE XT?

• A:Answer The maximum current for the fan and RGB is 4.5A.

Q: QuestionDoes the CORSAIR iCUE COMMANDER CORE XT have a USB pass-through port?

• A:Answer Yes, the CORSAIR iCUE COMMANDER CORE XT has a USB 2.0 pass-through port that allows you to connect an additional internal USB device.

Q: QuestionHow many fans can the CORSAIR iCUE COMMANDER CORE XT control?

• A:Answer The CORSAIR iCUE COMMANDER CORE XT can control up to six case fans.

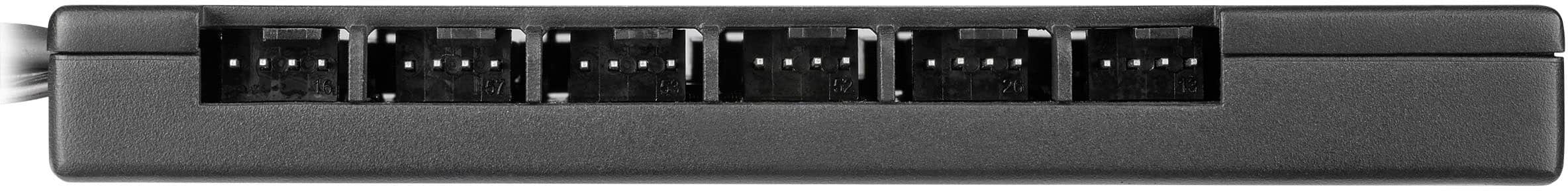

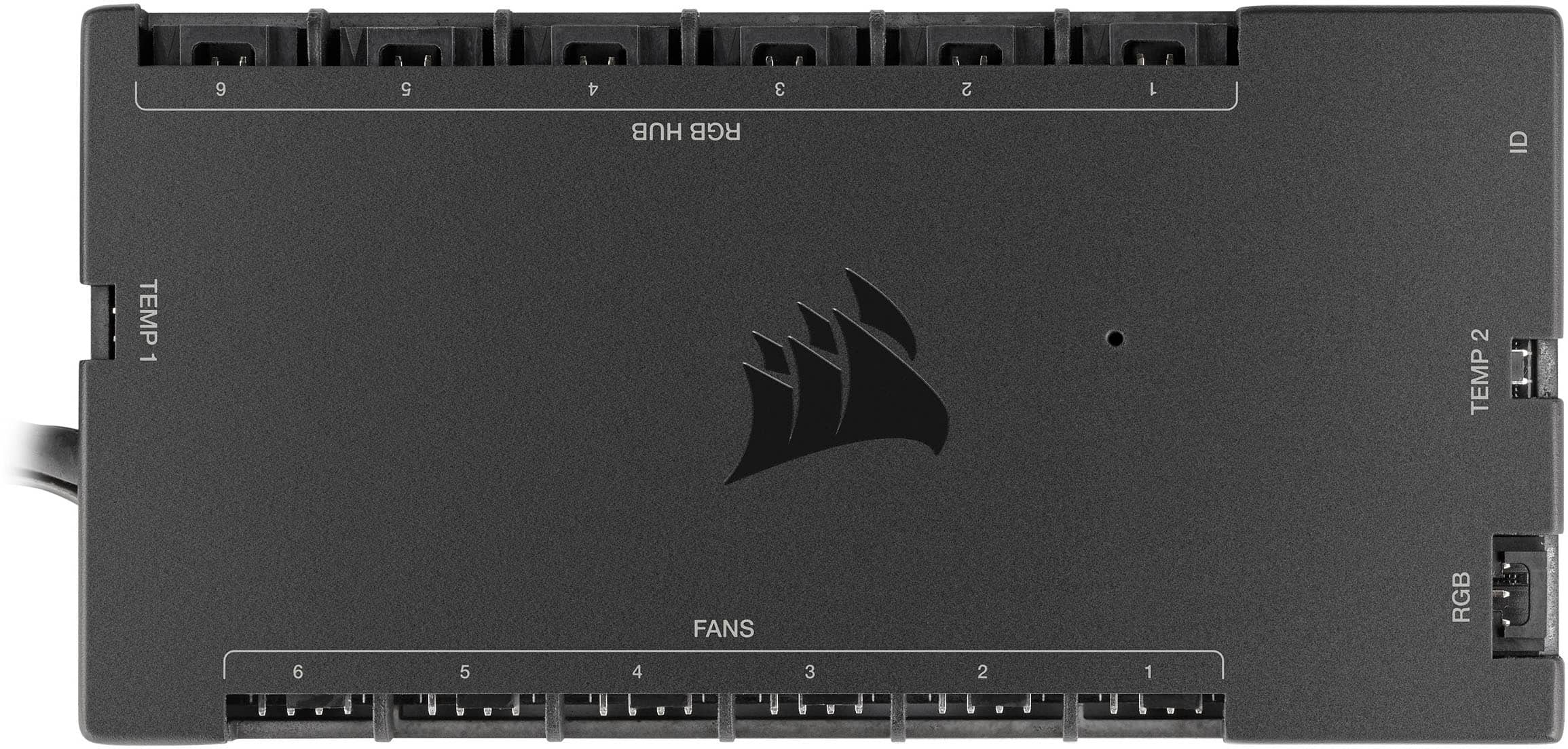

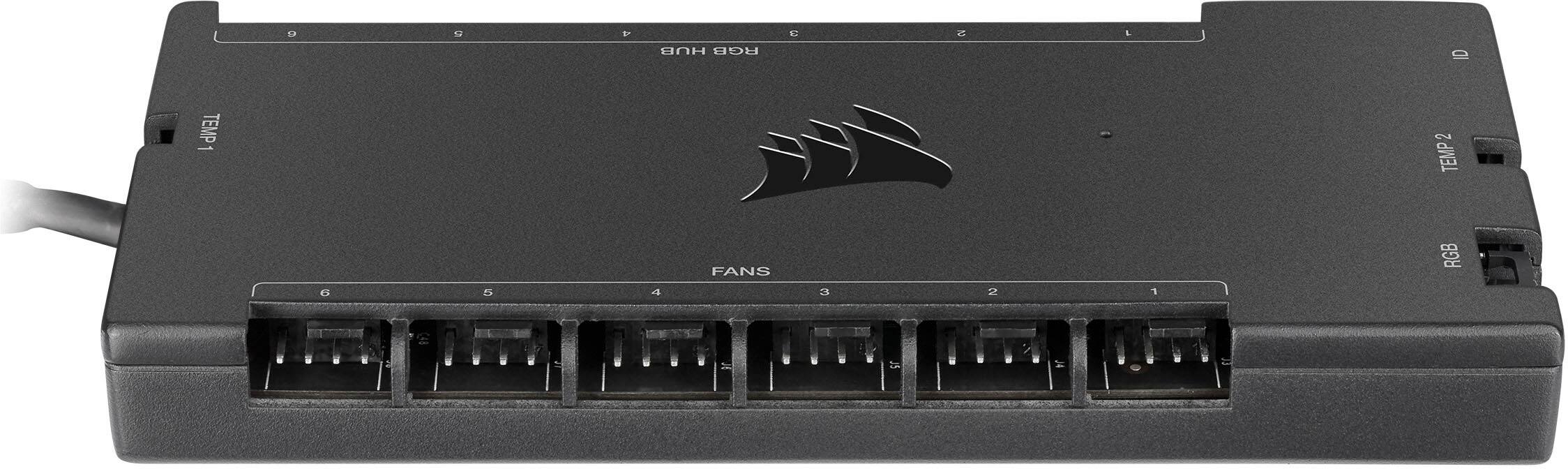

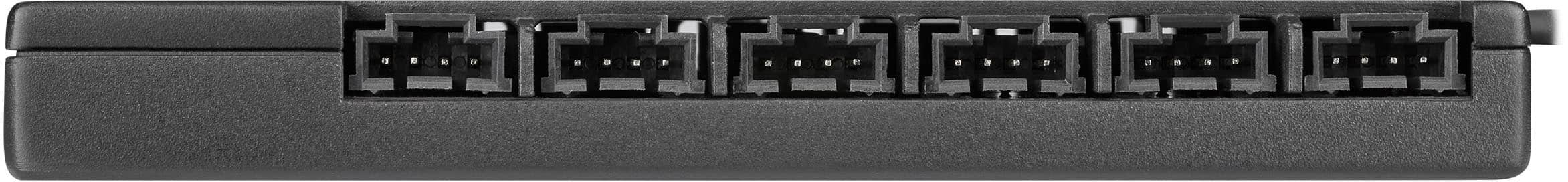

Q: QuestionWhat type of fan headers does the CORSAIR iCUE COMMANDER CORE XT have?

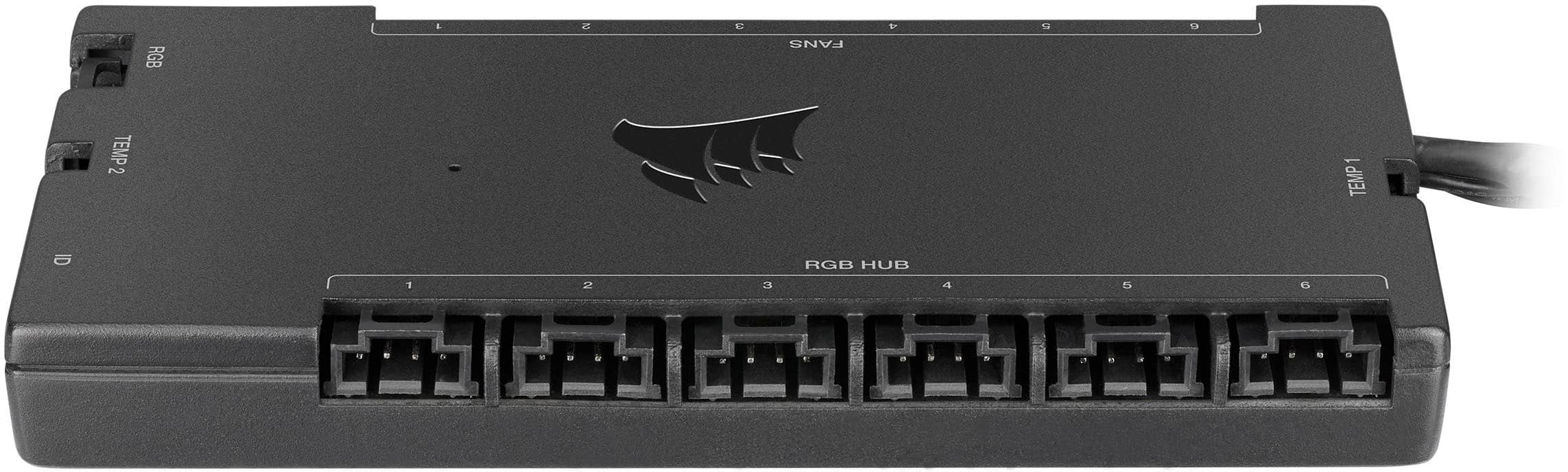

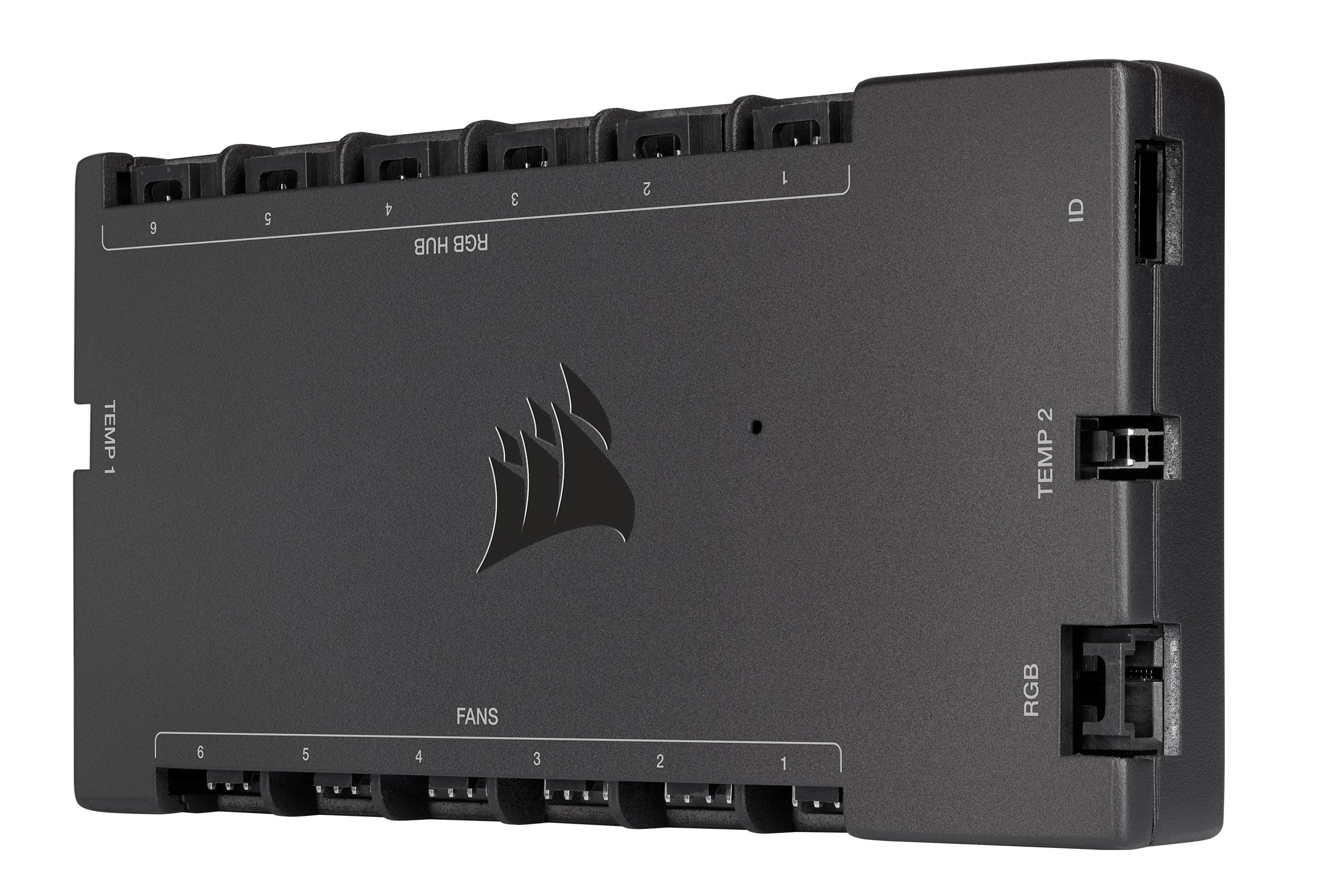

• A:Answer The CORSAIR iCUE COMMANDER CORE XT has 6 x 4-pin PWM fan headers.

Q: QuestionHow does the device detect the fans?

• A:Answer The device automatically detects any combination of up to six individually addressable CORSAIR RGB fans.

Q: QuestionCan I monitor temperatures with this device?

• A:Answer Yes, the CORSAIR iCUE COMMANDER CORE XT includes two repositionable temperature sensors and allows you to monitor temperatures through the CORSAIR iCUE software.

Q: QuestionDoes this work with an Asus motherboard? Can I use Armoury Crate software to adjust my RGB lighting and fan speed with this?

Asked 3 years ago by Andy.

• A:Answer Hi Andy, Yes, the COMMANDER CORE XT will work with your ASUS motherboard as long as it has a USB 2.0 header available. A SATA power connection from your PSU will also be required. This controller is designed for full functionality with our user-friendly iCUE software, which may be also control RGB lighting on various ASUS motherboards and GPUs. If you have any additional questions, we'd be happy to help: support.corsair.com -Albert

  Answered 3 years ago by Corsair


  Helpful (6)Unhelpful (2)ReportAnswer this questionShow more answers (4)

Q: QuestionSince my Corsair computer case holds 10 fans, does that mean I will have to buy 2 of these since the commander core XT only has 6 fan connectors? Next question is you have 4 types of fans: SP, QL, LL , and ML type. Which ones work with icue software?

Asked 3 years ago by TBone.

• A:Answer Hi TBone, That's correct, you would want to purchase 2 Commander Core XT's as you exceed the 6 fans that each unit can support. Our iCUE software can support those fan types if you're looking at the RGB versions, SP, QL, LL and ML. If you'd like to learn more about these fans, our software, or would like assistance with setup or installation, please feel free to reach out to our support team. We'd be more than happy to assist you directly: support.corsair.com -Brian

  Answered 3 years ago by Corsair


  Helpful (3)Unhelpful (0)ReportAnswer this questionShow more answers (3)

Q: QuestionHow to make Core XT work with 8 non-RGB corsair fans and 2 non-RGB non-corsair fans? The 2 non-Corsair will not show up?

Asked 2 years ago by RobA.

• A:Answer Turns out the 2 BeQuiet PWM fans are not supported. I tried a couple of other non-Corsair fans and the did work (both 3 and 4 pin). However another issue surfaced. The magnetic base can cause issues with PC shutting down if mounted behind motherboard plate. I had to move the Core Xt base to a different location to stop the issue, very strange.

  Answered 2 years ago by Anonymous

  Helpful (2)Unhelpful (0)ReportAnswer this questionShow more answers (3)

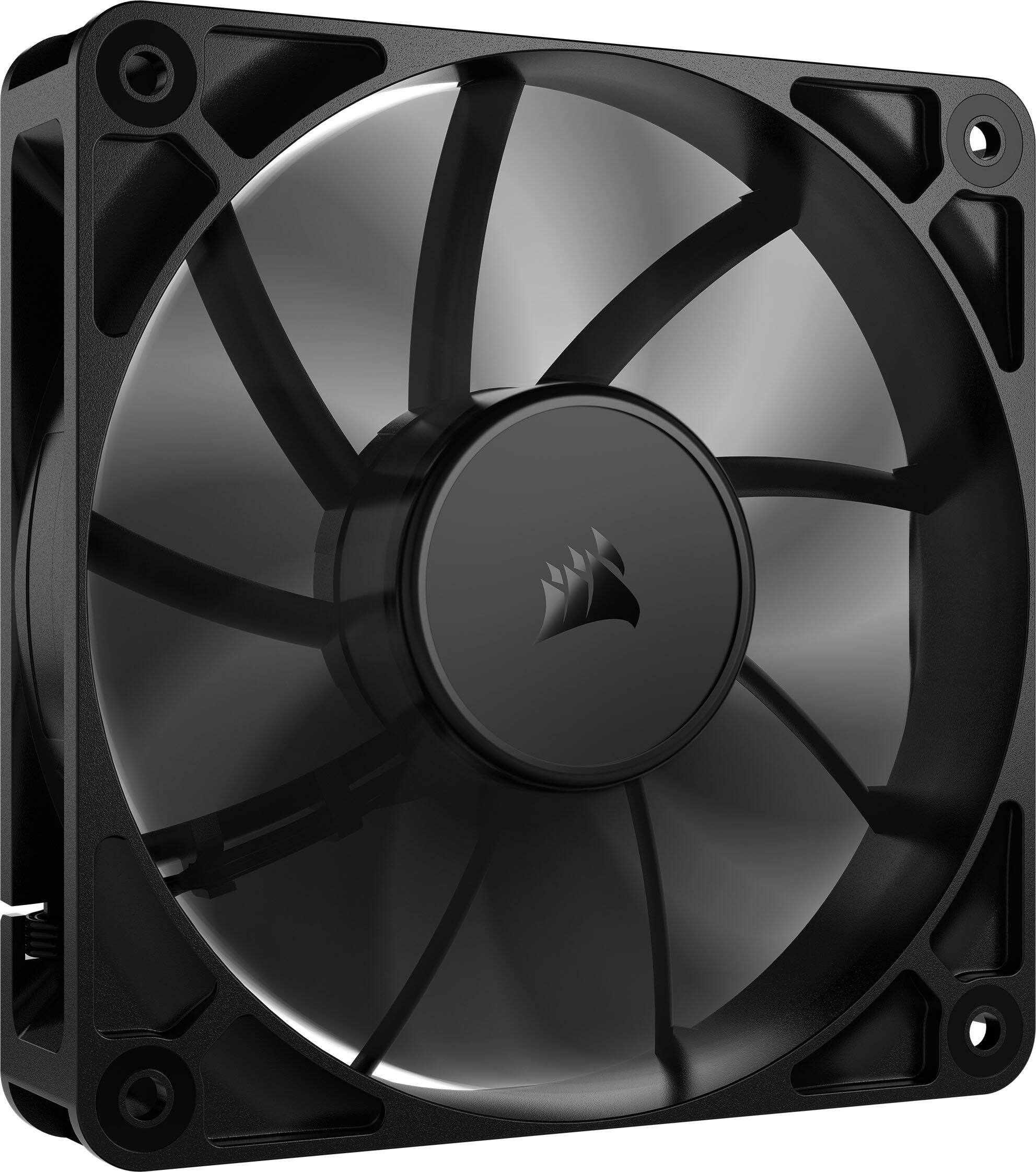

Q: QuestionWill this work with the Corsair RS120 and RS140 fans? I've seen a few people say it won't because of the daisy chain feature.

Asked 4 months ago by User.

• A:Answer Will work with RS120/140 Fans just have to manually add them but you will need to purchase the grab 3pin to 4pin adapter to connect to the hub as well

  Answered 4 months ago by YemsVIIVerified Purchase

  Helpful (1)Unhelpful (0)ReportAnswer this questionShow more answers (1)

Q: QuestionIs this compatible with the sp120 rgb elite fans?

Asked 2 years ago by anonymous.

• A:Answer All Corsair fans should be compatible with the commander core xt. Functionality in ICUE will vary depending on what features the fan has. I was using the SP120 fans with my commander core xt without any issues. Hardware Artisan has some excellent videos on Corsair fans on YouTube.

  Answered 2 years ago by ZackVerified Purchase

  Helpful (1)Unhelpful (0)ReportAnswer this questionShow more answers (2)

Q: QuestionWill my phanteks D30-120 rgb fans work with this controller?

Asked 5 months ago by Junior.

• A:Answer Hello, PWM fans will work with this, although no RGB will be provided. -Art

  Answered 5 months ago by Corsair


  Helpful (0)Unhelpful (0)ReportAnswer this question

Q: QuestionThe fans that I have are three-prong connectors, will this work for fans with three prongs?

Asked 8 months ago by Anonymous.

• A:Answer Hi, If you are referring to the DC fan connector, then yes, that will work with the COMMANDER CORE XT. If you have any additional questions, please feel free to reach out to support via our website and we'll happily assist you. -Albert

  Answered 8 months ago by Corsair


  Helpful (0)Unhelpful (0)ReportAnswer this question

Q: QuestionMy ASRock B650M-HDV/M.2 Micro ATX AM5 Motherboard does not support RGB will this let me use RGB on my corsair fans?

Asked 10 months ago by GabrielA.

• A:Answer Hello Gabe, Depends on the fans, please refer to their product pages for more information. -Art

  Answered 10 months ago by Corsair


  Helpful (0)Unhelpful (0)ReportAnswer this question

Q: Questionso it seems i need to replave my commander core on my pc but am reading alot of things saying i need to use the commander core that comes with the h150i capellix, can i use the commander core xt with my current pump?

Asked 1 year ago by Dillon.

• A:Answer Hello, How does it seem you need to replace it? Please consult with our team directly to get the best solution recommendation for you! -Art

  Answered 1 year ago by Corsair


  Helpful (0)Unhelpful (0)ReportAnswer this questionShow more answers (1)

Q: QuestionI just bought a commander core to connect 6 LL120 fans. Only ports 1,2, and 3 have Rgb. I’ve checked all of the fans to make sure they work. I’ve seen online this is a common problem, but haven’t seen any solutions. Is there something I’m missing?

Asked 1 year ago by Anonymous.

• A:Answer Hello, This isn't a common problem. Did you buy a Commander Core or Commander Core XT? Please contact our team directly on our site for assistance! -Art

  Answered 1 year ago by Corsair


  Helpful (0)Unhelpful (0)ReportAnswer this question

Q: QuestionIs this product a good choice if I will only use a couple of the plug-ins?

Asked 1 year ago by Jacob.

• A:Answer Yes definitely, that way if you even need more you have them.

  Answered 1 year ago by THadrichVerified Purchase

  Helpful (0)Unhelpful (0)ReportAnswer this questionShow more answers (3)

Q: QuestionCan i connect 7 CORSAIR fans to this or will i have to buy 2

Asked 1 year ago by chiller122.

• A:Answer Unfortunately it only supports 6 PWM fan connects and 6 RGB connections. I would recommend getting a fan hub off Amazon. Hope this helped.

  Answered 1 year ago by ElijahMVerified Purchase

  Helpful (0)Unhelpful (0)ReportAnswer this questionShow more answers (3)
